Products > Die casting hardware > > Plunger sleeve

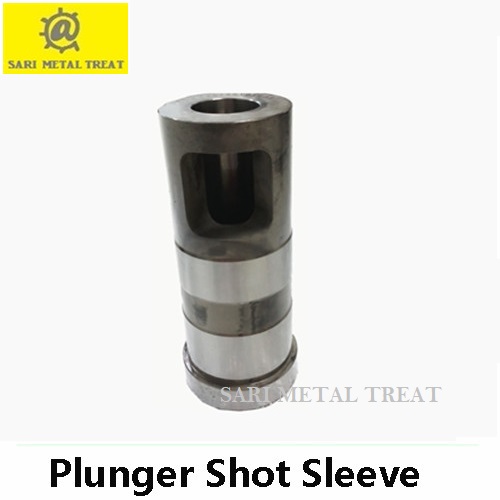

Product name : Plunger sleeve
Name : Plunger sleeve
Size/Shape : 160T-3000T OEM
Material/grade : SKD61 H13
Hardness/Density : 7.8 g/cm3
Package : 20pcs per carton
Delivery : 20-30days
Hot sale : 350T, For diecasting machine Toshiba , LK, TOYO
Application : Aluminum Die casting, Zinc die casting, magnesium die casting
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

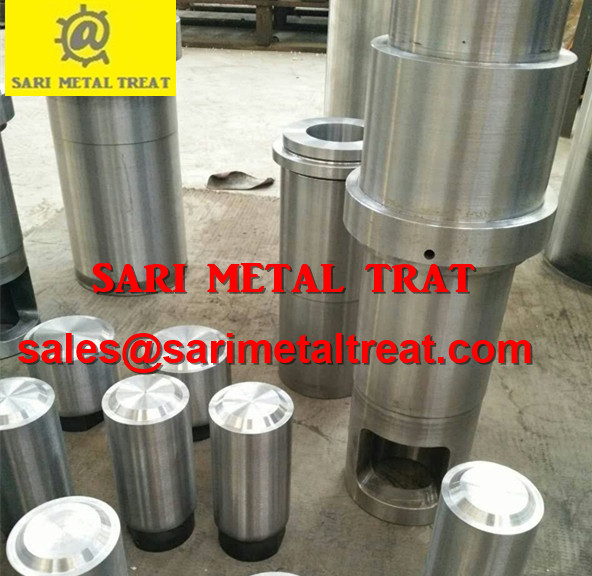

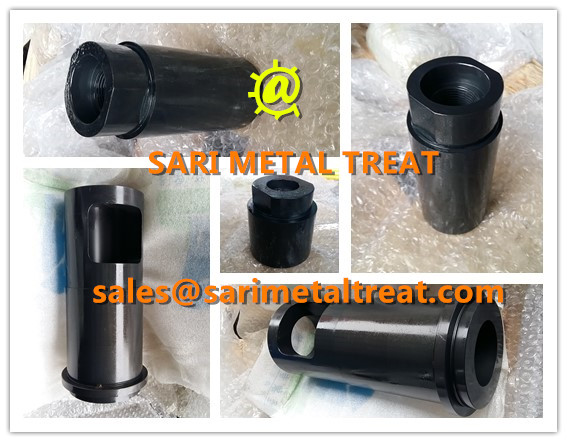

Plunger sleeve for die casting:

Material: H13 Steel /SKD61
Hardness: 45-50HRC, 50-65HRC
Treatment:N Heattreatment, Nitrieded
Size : 180T, 280T, 400T, 500T, 650T, 800T--3000Ton, according to your requirement

Life Time:  Usually 3-5 months, high grade accoring to your requirement
We can manufacture plunger sleeve according to your drawings.
Other name: Meltig cup, shooting sleev, plunger sleeve


The Plunger sleeve is a critical element of aluminum die cast process. For maximum productivity,
and also maximum operating life for both shot sleeve and plunger tip,
the plunger must consistently move smoothly, and at a steady speed through a perfectly round,
straight, shot sleeve.This does not always happen, however, because when heated, metal expands.
If partially filled with hot molten alloy, the shot sleeve will become distorted.

Goal

·        Stabilize temperatures to maintain a round and straight shot sleeve,
  so that plunger tip can seal on shot sleeve wall, extending tooling life.
 Allow plunger to move through the shot sleeve smoothly and consistently, reducing scrap.
Provide a long life minimizing unscheduled downtime

Function

The function of the shot sleeve is to contain the molten aluminum being pushed into the mold by the plunger tip.

Any more details of products, package, payment, delivery etc,
welcome contact with us, we will reply to you soon.
